PANASONIC CSPN9WKH/CUPN9WKH AIR COND STANDARD NON INVERTER GAS R32 1.0HP (FAST SHIP KL/SELANGOR)

Product Description :

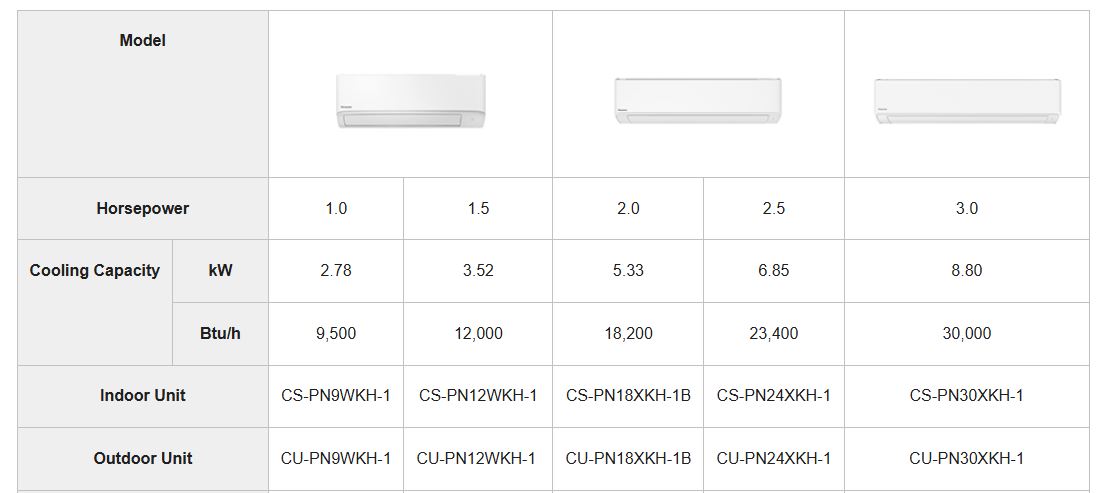

Model
Indoor (50Hz): CS-PN9WKH-1
Outdoor (50Hz): CU-PN9WKH-1

Refrigerant Type
R32

Cooling Capacity
(min-max) kW: 2.78
(min-max)Btu/h: 9,500

EER
(min-max) Btu/hW: 11.59
(min-max) W/W: 3.39

CSPF
3.48

Electrical Data
Voltage (V): 230
Running Current (A): 3.7
Power Input (W): 820

Moisture Removal
L/h: 1.6
Pt/h: 3.4

Air Circulation
Indoor m3/min (ft3/min): 10.9 (385)
Outdoor m3/min (ft3/min): 28.8 (1,020)

Noise Level
Indoor (H/L/Q-Lo) (dB-A): 38/26
Outdoor (H / L) (dB-A): 48

Dimensions
Height (mm): 290 (511)
Height (inch): 11-7/16 (20-1/8)
Width (mm): 779 (650)
Width (inch): 30-11/16 (25-19/32)
Depth (mm): 209 (230)
Depth (inch): 8-1/4 (9-1/16)

Net Weight
Indoor kg (lb): 8 (18)
Outdoor kg (lb): 21 (46)

Refrigerant Pipe Diameter
Liquid Side (mm): ø 6.35
Liquid Side (inch): 1/4
Gas Side (mm): ø 9.52
Gas Side (inch): 3/8

Pipe Extension
Chargeless Pipe Length (m): 7.5
Maximum Pipe Length (m): 20
Maximum Elevation Length (m): 15
Additional Refrigerant Gas* (g/m): 10

Power Supply
Indoor

Cleaner Air
Odour-Removing Function: Yes
Removable, Washable Panel: Yes

Comfort
SLEEP: Yes
Powerful Mode: Yes
Quiet Mode: Yes
Soft Dry Operation Mode: Yes
Airflow Direction Control (Up Down): Yes
Manual Horizontal Airflow Direction Control: Yes

Convenience
24-Hour ON OFF Real Setting Timer: Yes
LCD Wireless Remote Control: Yes
Wired Remote Control: Yes (Optional)

Reliability
Random Auto Restart (32 Restart Patterns): Yes
Blue Fin Condenser: Yes
Long Piping (Numbers indicate the maximum pipe l
